Nakajima G10N AEW
« on: December 05, 2021, 02:43:31 AM »

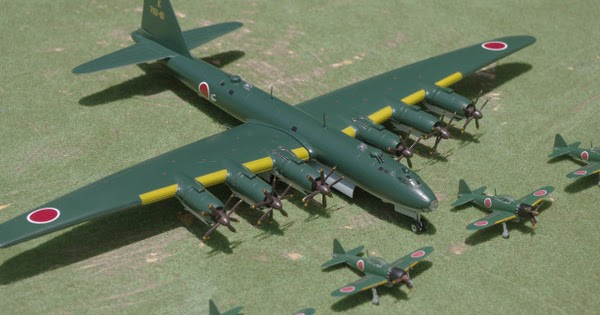

Since we do have this model in game, what if Japan had made some for AEW for the Pacific.

https://www.sas1946.com/main/index.php?topic=62796.0












Code: [Select]
Specifications (Project Z / Fugaku projected)

Data from Japanese Secret Projects:Experimental aircraft of the IJA and IJN 1939–1945[1]

General characteristics

    Crew: 6 to 10

                Fugaku: 7 to 8

    Length: 44.98 m (147 ft 7 in)

                Fugaku: 39.98 m (131 ft)

    Wingspan: 64.98 m (213 ft 2 in)

                Fugaku: 62.97 m (207 ft)

    Height: 8.77 m (28 ft 9 in)
    Wing area: 352.01 m2 (3,789.0 sq ft)

                Fugaku: 330 m2 (3,552.09 sq ft)

    Aspect ratio: 12.1
    Empty weight: 65,000 kg (143,300 lb)

                Fugaku: 33,800 kg (74,516.24 lb)

    Gross weight: 122,000 kg (268,964 lb)

                Fugaku: 42,000 kg (92,594.15 lb)

    Max takeoff weight: 160,000 kg (352,740 lb)

                Fugaku: 70,000 kg (154,323.58 lb)

    Powerplant: 6 × Nakajima Ha-54 36-cyl. air-cooled radial piston engines, 3,700 kW (5,000 hp) each at take-off

                Fugaku: 6x Nakajima NK11A 18-cyl. air-cooled radial piston engines developing 2,500 hp (1,864 kW) at take-off

    Propellers: 6-bladed contra-rotating constant speed propellers, 4.5 m (14 ft 9 in) diameter

                Fugaku: 4-bladed constant speed propellers 4.8 m (16 ft) diameter

Performance

    Maximum speed: 679 km/h (422 mph, 367 kn) at 10,000 m (32,808 ft)

                Fugaku: 779 km/h (484 mph) at 10,000 m (32,808 ft)

    Range: 17,999 km (11,184 mi, 9,719 nmi) maximum

                Fugaku: 19,400 km (12,055 mi)

    Service ceiling: 15,000 m (49,000 ft)
    Wing loading: 456.99 kg/m2 (93.60 lb/sq ft)

                Fugaku: 211.89 m2 (43.4 lb/ft2)

    Power/mass: 0.103 kW/kg (0.063 hp/lb)

                Fugaku: 0.118 kW/kg (0.07 hp/lb)

Armament

    Guns: 4× 20mm Type 99 cannon
    Bombs: 20,000 kg (44,092 lb) of bombs



References
Notes
