Re: Nakajima G10N Fugaku & G8N Renzan N-40 "Rita"- strategic heavy bombers.
« Reply #12 on: January 03, 2014, 05:41:08 PM »

These would be AWESOME to have in game!
Logged

The Radge

  • Modder
  • member
  • Offline Offline
  • Posts: 1023
Re: Nakajima G10N Fugaku & G8N Renzan "Rita"- strategic heavy bombers.
« Reply #13 on: March 25, 2014, 03:12:32 AM »

Very cool request! I think this planes should be made because Japs don't (and didn't) have any strategic bombers at all and this injustice should be eliminated at least in our Il-2 ;)

I also think that to this request should be added plane G5N Shinzan (Liz). :)
Logged

.50calBMG

  • member
  • Offline Offline
  • Posts: 260
  • Landing just means stop flying, right?
Re: Nakajima G10N Fugaku & G8N Renzan N-40 "Rita"- strategic heavy bombers.
« Reply #14 on: March 25, 2014, 08:46:10 PM »

93.6 lb/sqft wing loading! Good Lord! How the hell does that thing even get off the ground. and at around 30 lb/sqft the B-29 was thought to be insanely heavy! +1 and all that, but God!
Logged

Batbomb

  • Modder
  • member
  • Offline Offline
  • Posts: 879
Re: Nakajima G10N Fugaku & G8N Renzan N-40 "Rita"- strategic heavy bombers.
« Reply #15 on: March 26, 2014, 10:07:51 AM »

I would have had the possibility the engines would have been freaking strong powerhouses. There was even one example built...

Logged

Krieger51

  • member
  • Offline Offline
  • Posts: 42
Re: Nakajima G10N Fugaku & G8N Renzan N-40 "Rita"- strategic heavy bombers.
« Reply #16 on: April 01, 2014, 11:36:37 AM »

+1 I hope these get into the game someday. Would love to fly and try to shoot them down.  ;D
Logged

Dataman

  • SAS~Tachikoma
  • member
  • Offline Offline
  • Posts: 212
Re: Nakajima G10N Fugaku & G8N Renzan N-40 "Rita"- strategic heavy bombers.
« Reply #17 on: April 05, 2014, 04:25:36 PM »

+1 for the Death Star ;)

93.6 lb/sqft wing loading! Good Lord! How the hell does that thing even get off the ground. and at around 30 lb/sqft the B-29 was thought to be insanely heavy! +1 and all that, but God!
If it leaves the ground, put one .50 caliber round in the wing root to send it back where it came from :D
Logged

Bf-110

  • Tries to use mods
  • member
  • Offline Offline
  • Posts: 21
Re: Nakajima G10N Fugaku & G8N Renzan "Rita"- strategic heavy bombers.
« Reply #18 on: April 07, 2014, 09:23:58 AM »


I also think that to this request should be added plane G5N Shinzan (Liz). :)

The same thing I thought.Those bombers would be awesome to have at IL2.
IL2 seriously lacks japanese aircraft.
Logged

KingTiger503

  • Legendary History Luftwaffe Elite Ace ,,, FAC# 53
  • Supporter
  • member
  • Offline Offline
  • Posts: 1913
  • KT503 Elite
Nakajima G5N Shinzan, (Allied Code name Liz)
« Reply #19 on: August 09, 2015, 02:09:29 AM »

Hello gentlemen

This G5N Heavy Bomber is Outstanding

https://en.wikipedia.org/wiki/Nakajima_G5N

The Nakajima G5N Shinzan (??"Mountain Recess") was a four-engined long-range heavy bomber designed and built for the Imperial Japanese Navy prior to World War II. The Navy designation was "Experimental 13-Shi Attack Bomber"; the Allied code name was "Liz".

Code: [Select]
Role Heavy bomber
Manufacturer Nakajima Aircraft Company
First flight 8 April 1941[1]
Retired 1945
Primary user IJN Air Service
Produced 6
2 of G5N1
4 of G5N2
Developed from Douglas DC-4E

































Design and development

The Nakajima G5N Shinzan originated due to the Imperial Japanese Navy's interest in developing a long-range attack bomber capable of carrying heavy loads of bombs or torpedoes a minimum distance of 3,000 nmi (5,600 km; 3,500 mi). To meet this requirement, it became apparent a four-engine lay-out would be necessary. As Japanese aircraft manufacturers lacked experience in building such large complex aircraft, the Navy was forced to search for a suitable existing foreign-made model upon which to base the new design. It settled on the American Douglas DC-4E airliner. In 1939 the sole prototype of this airliner (previously rejected by American airline companies) was purchased by Nippon Koku K.K. (Japan Airlines Co) and clandestinely handed over to the Nakajima Aircraft Company for dismantling and inspection.[2]

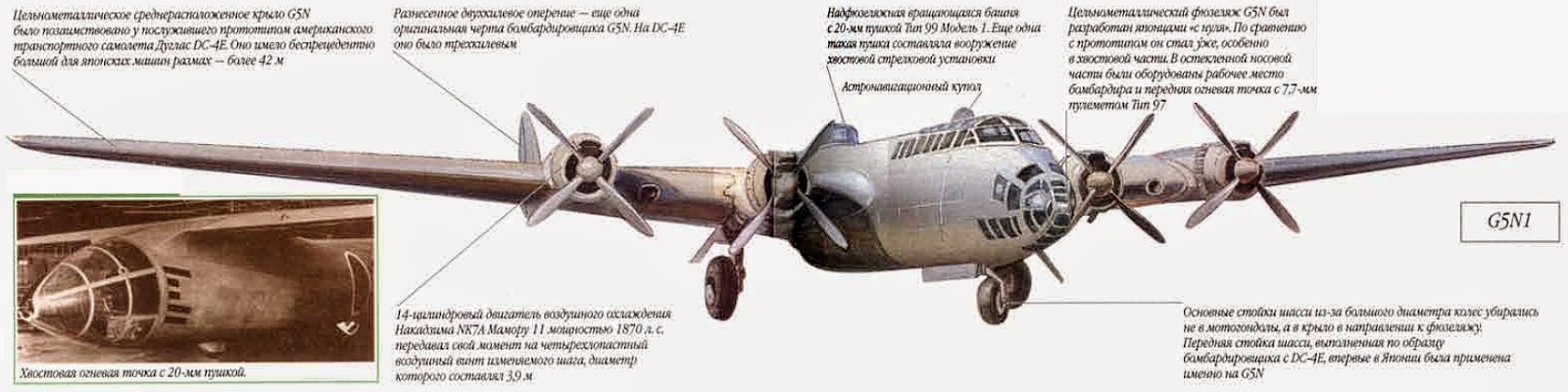

The design that emerged from this study was for an all-metal mid-wing monoplane with fabric-covered control surfaces and powered by four 1,870 hp Nakajima NK7A Mamori 11 air-cooled radial engines driving four-bladed propellers. Notable features included a long ventral bomb-bay, glazed nose and twin tailfins replacing the DC-4E's distinctive triple rudder. The DC-4E's retractable tricycle undercarriage was retained, as well as the original wing form and powerplant arrangement. Defensive armament comprised one 20mm Type 99 Model 1 cannon each in a power-operated dorsal and tail turret plus single-mount hand-operated 7.7mm Type 92 machine guns in the nose, ventral and waist positions.[3]

The first prototype G5N1 made its maiden flight on 14:35 8 April 1941.[1] Overall performance proved disappointingly poor however, due to a combination of excessive weight, the unreliability of the Mamori engines and the complexity of the design. Only three more prototypes were completed. In an attempt to salvage the project, two additional airframes were fitted with 1,530 hp Mitsubishi MK4B 12 "Kasei" engines and redesignated G5N2s. Although the Mitsubishi engines were more reliable than the original Mamori 11s, the aircraft was now even more hopelessly underpowered and further development of the type was halted.[3]

Operational history

Of the six completed Shinzans, four of them were relegated for use as long-range Navy transports under the designation G5N2-L Shinzan-Kai Transport. The Allies allocated the code-name "Liz" to the aircraft, in the expectation it would be used as a bomber.[3]

Variants

Code: [Select]
G5N1 Experimental Type 13 Land-based Attack Bomber "Shinzan" (13?????? ?? 13-Shi Rikuj? K?gekiki "Shinzan")
Prototype, two built. Initial named Experimental Type 13 Large-size land-based Attack Bomber (13???????? 13-Shi ?gata Rikuj? K?gekiki). Four-engined heavy bomber/torpedo bomber. Three-blade propeller, mounted four Mitsubishi MK4B Kasei 12 (1,530 hp) radial engines.
G5N2 Test production "Shinzan Kai" (????? Shisei "Shinzan Kai")
Supplementary prototype, four built. Four-blade propeller, mounted four Nakajima NK7A Mamori 11 (1,870 hp) radial engines. All G5N2s were rebuilt to G5N2-L in 1943.
G5N2-L "Shinzan Kai" Freighter (?????? "Sinzan Kai" Yus?ki)
Long-range Navy transport conversion. All G5N2-Ls were deployed to 1021st K?kutai, Katori Air Base.
Nakajima Ki-68
Proposed Army bomber prototype version of the G5N1. Engines were planned Mitsubishi Ha-101, Ha-104, Ha-107, Nakajima Ha-39 or Ha-103 engines. Discontinued in 1941.
Kawasaki Ki-85
Proposed Army bomber version of the G5N1. Four Mitsubishi Ha-111M engines. Full scale mock-up was built in 1942, discontinued in May 1943.

Operators

Code: [Select]
Japan
Imperial Japanese Navy Air Service[5]
1021st K?kutai

Specifications (G5N2)

Code: [Select]
Data from Japanese Aircraft of the Pacific War[3]Famous airplanes of the world (1984)[4]
General characteristics

Crew: 7 (G5N1/2), 6 (G5N2-L)
Length: 31.02 m (101 ft 9 in)
Wingspan: 42.12 m (138 ft 2 in)
Height: 8.8 m (27 ft 6 in)
Wing area: 201.8 m² (2,171.37 ft²)
Empty weight: 20,100 kg (44,300 lb)
Loaded weight: 28,150 kg (62,060 lb)
Max. takeoff weight: 32,000 kg (70,528 lb)
Powerplant: 4 × Nakajima NK7A "Mamori-11" 14-cylinder air-cooled radial Sumitomo/Hamilton four-blade constant-speed, 1395 kW (1870 hp) each
Performance

Maximum speed: 420 km/h (227 kn, 261 mph)
Cruise speed: 278 km/h (150 kn, 173 mph, G5N1)
Range: 4,260 km (2,302 nmi, 2,648 mi)
Service ceiling: 7,450 m (24,442 ft)
Armament

Guns
2× 20 mm Type 99 cannons
4× 7.7 mm (0.303 in) Type 92 machine guns
Ordnance
2,000-4,000 kg (4,408-8,816 lb) bombs or torpedoes
2× 1,500 kg torpedoes
2× 1,500 kg bombs
4× 800 kg bombs
12× 250 kg bombs
24× 60 kg bombs
4,000 kg freight (G5N2-L)
Logged
My Greatest and Best Regards KT503

KingTiger503

  • Legendary History Luftwaffe Elite Ace ,,, FAC# 53
  • Supporter
  • member
  • Offline Offline
  • Posts: 1913
  • KT503 Elite

I think We Can Start One Post at the Time, Not All of them, Too bad, you wont get a Blueprint from G5N, I found it First.
Logged
My Greatest and Best Regards KT503

SAS~Gerax

  • SAS Team
  • member
  • Offline Offline
  • Posts: 4765

I found it First.

so you make requests to become the "first who found something"?
Interesting... but that's not what this request section is meant to be.

Its good as it is now: I merged your new request with this existing thread
as there is no need to have this Japan strategic bombers in seperate threads.
Logged
i7-13700K, MSI RTX4090, Kingston 64GB, Asus Z790-P, Crucial SSD 1TB, Kingston SSD 4TB;

KingTiger503

  • Legendary History Luftwaffe Elite Ace ,,, FAC# 53
  • Supporter
  • member
  • Offline Offline
  • Posts: 1913
  • KT503 Elite

Really, Thanks Gerax, This Bombers is Very Big than B-29
Logged
My Greatest and Best Regards KT503

King_109

  • member
  • Offline Offline
  • Posts: 68
  • Hail Hydra

I really want this bombers in il-2 i hope modders can do it
thanks ....
