FMA IAe-33 Pulqui II
« on: March 04, 2018, 12:06:48 AM »

The opening of the Super School emboldened me and I started making my favorite silver flying barrel. ;D

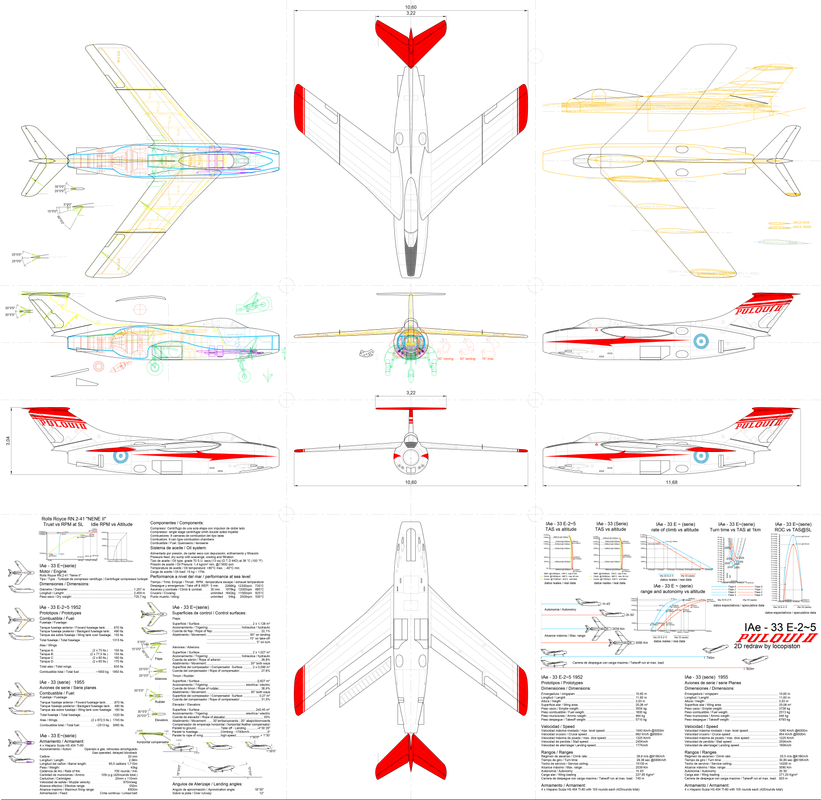

First, gather a lot of data and create a complete database of 2D drawings.

Then, I started doing 3D modeling. I have it ready!

Now, very little by little, I'm doing things that I do not do but I think I'll be able to solve them.

I have done all the work in AutoCAD, which is my native program. But it has a 100% compatibility with the 3Dmax.  :-X

I am learning the whole protocol of names, and seeing how I do to map all those pieces with a skin. :-|

I do not have the slightest idea how to program or animate ... in that I'm going to ask for help from friends! :-[





























FMA IAe-33 Pulqui II
In the immediate post war in Argentina…     At the General Peron firs government.
After the flight of pulqui 1 (first Latin-American jet, straight wing, poorly speed) design laddering by Emile Dewotine, he left Argentina to back from France.
In ends of 1948 an Argentinian team of engineers Morchio and Ricciardi start to make a real fast fighter for that time.   They design a single engine axial compressor jet with low wing whit a swep of 35° and NACA 16009 profile.

The director of FMA (fabrica militar de aviones) proposed to add two new engineers from Germany to the team. They presented themselves as Pedro Matties (Kurth Tank) and José Maria Choel (Reimar Horten). They basically proposed to make a Foke Wulf Ta-183.  Argentine engineers knew the plane as a Tank plane, they were not willing to make a copy. Having never seen a photograph of Tank they did not know who he was, and they discussed some characteristics of the German plane.

The farce lasted little and immediately everyone realized that it was the famous Tank, who now led the design office of the fighter.
Despite this, the aircraft retained the NACA 16009 wing profile and the complete structure of the fuselage, landing gear included, designed by the Argentine team.
FMA had obtained 3 Rolls Royce Nene II engines to test in prototypes and manufacture it under license.
The first Pulqui II flew on 06/16/1950 and continued its development program until 1955, changes were made to: the front wheel of the landing gear; profile of leading edge in the wing implantation to eliminate the aerodynamic shadow on the elevator; prolongation of the rudder; exhaust nozzle; fences channelers on the wings and finally a more powerful engine the RR Nene VII.
In 1951 several official demonstrations of the plane were carried out, commanded by General Peron, showing his jewel and trying to export it.

It was exhibited to the prince of Holland, which was interested as well as the Spanish government. Both the Americans and the Soviets dedicated publications and interest in the new fighter.
The performance was similar to the mig-15bis but with twice the autonomy and duration in flight. Due to the vastness of the Argentine territory that had to cover an interceptor fighter.
By 1955 the development was complete with the fully operational prototype and 10 cells ready to begin serial production of the first 100 for 1956.

In mid-1955 there was a coup d'état against Peron, carried out by sectors of the "rural society" the "Catholic Church" and the "naval aviation" which was called the “liberating revolution”.
Among other atrocities, the Plaza de Mayo and the government house were bombed, injuring more than 2000 people and killing 400.
The airplanes that participated were painted with a badge that consisted of a cross on a V, and the slogan was "Cristo Vence"

The operating Pulqui II was taken by the rebels and painted with the badge.
It is not registered which was specifically its activity, but the fuselage was marked by the deflagrations of the guns.
Then he participated in the "Victory Parade" with two Gloster Meteors.

Peron's plane had turned against him.

The new government's policy was diametrically opposed to the industrialization, so production was delayed.
In 1957 the construction of one pre-series aircraft, of a series of 100, began.
The government of the United States of America offered 100 F-86 sabre of the Korean War at a scrap price.
That offer definitely grounded Pulqui II  :(
Of those 100 sabres only 28 F-86F-40 arrived 4 years later, 8 without the engine. ::(



Pulqui II is a metaphor for Argentina, when you want it can, but they do not leave it.
Likewise everything good is tinged with something dark.

Can you give me a hand!?  o_O
am still very stubborn and I will finish it one way or another! ;D

I do not know how to upload files since I have several. any link to tutorial?

I hope you like it!

cheers!
