Early British Transport: Vickers Type 264 Valentia
« on: April 05, 2015, 04:32:04 AM »

Hi all!

During early war campaigns, both in MTO and PTO, available in-game classic British trasport is the C-47. Actually this plane entered service with RAF only during second half of WWII, while earlier RAF had in use some "exotic" aircraft like Bristol Bombay and Vickers Victoria. :-X

Perhaps the most ubiquitous at that time, the Vickers Valentia operated in the Desert war as well as over Burma, so I would propose to our talented modelers to fill this gap. Here follow some info:



From Wikipedia:
"The Valentia (within the company known as the Type 264) was a British biplane cargo aircraft built by Vickers for the Royal Air Force. The majority built were conversions of the earlier Vickers Victoria.

Design and development

While the Napier Lion-powered Victoria served successfully with the RAF as a bomber transport, by 1932, the Lion engine was becoming obsolete and it was clear that it could use more power. It was therefore decided to re-engine the aircraft with more powerful Bristol Pegasus engines. It was decided to carry out a two-stage upgrade, with the first, which was designated the Victoria Mk VI, or Configuration I, retaining the airframe of the Victoria, and therefore having a limited maximum weight, and a version with a strengthened airframe capable of taking full advantage of the greater power of the Pegasus engine. This was known as Configuration 2 and was designated the Vickers Valentia. It flew for the first time in 1934.

Orders were placed for the 28 new build Valentias to Specification 30/34, with a further 54 being converted from Victorias (Type 278 within the company), with production continuing until 1936.

Operational history

The Valentia first entered service with No. 70 Squadron RAF at Hinaidi, Iraq in 1934, equipping British forces in India, Persia and Iraq.

Like the preceding Vernons and Victorias, the Valentias were extensively used for transport operations in the Middle East, and when necessary used for bombing operations with bomb racks under the wings. Valentias were also fitted with loudspeakers for experiments with sky-shouting (i.e. using the loudspeakers to address people, in this case potentially rebellious tribes during air policing duties, while in flight). The Valentia was also used for experiments with aerial refuelling by Alan Cobham.

Valentias were used for night bombing operations over the Western Desert in 1940 and remained in service with the Iraq and Persia Communications Flight until 1944. The South African Air Force pressed a Valentia into service as a bomber in the East African Campaign in 1940-41.

Variants

    Valentia Mk I : Military transport aircraft for the RAF.

Operators

 India

    Royal Indian Air Force

 South Africa

    South African Air Force

 United Kingdom

    Royal Air Force
        No. 31 Squadron RAF
        No. 70 Squadron RAF
        No. 216 Squadron RAF
        No. 244 Squadron RAF

Specifications (Valentia Mk. I)

Data from Aircraft of the Royal Air Force

General characteristics

    Crew: 2
    Capacity: 22 troops
    Length: 59 ft 6 in (18.14 m)
    Wingspan: 87 ft 4 in (26.63 m)
    Height: 17 ft 9 in (5.41 m)
    Wing area: 2,178 ft² (202.4 m²)
    Empty weight: 10,944 lb (4,975 kg)
    Loaded weight: 19,500 lb (8,864 kg)
    Powerplant: 2 × Bristol Pegasus II L3 or M3 radial, 650 hp (485 kW) each

Performance

    Maximum speed: 113 kn (130 mph, 209 km/h) at 5,000 ft
    Cruise speed: 102 kn (117 mph, 188 km/h)
    Range: 696 nm (800 mi, 1,288 km)
    Service ceiling: 16,250 ft (4,950 m)
    Rate of climb: 700 ft/min (3.56 m/s)
    Wing loading: 8.95 lb/ft² (43.8 kg/m²)
    Power/mass: 0.067 hp/lb (0.11 kW/kg)

Armament

    Bombs: Could be fitted with underwing racks for 2,200 lb of bombs
."






Other useful link:
http://www.historyofwar.org/articles/weapons_vickers_valentia.html
Logged
CPU: AMD Athlon 64 - RAM: 2GB DDR @ 201 MHz - MoBo: ASUSTeK Computer INC. A8N-SLI (Socket 939) - Vidcard: 1024MB NVIDIA GeForce 9400 GT (Club3D) - Screen: L1750SQ (1280x1024@75Hz) - Audio: Realtek AC'97 Audio.

asheshouse

  • SAS Team
  • member
  • Offline Offline
  • Posts: 2560
Re: Early British Transport: Vickers Type 264 Valentia
« Reply #1 on: April 05, 2015, 04:38:03 AM »

There does not seem to be much detailed information (good drawings) of this aircraft, but it would be nice to have to populate the early war years in East and North Africa.
The very similar looking civilian version was named the Victoria.

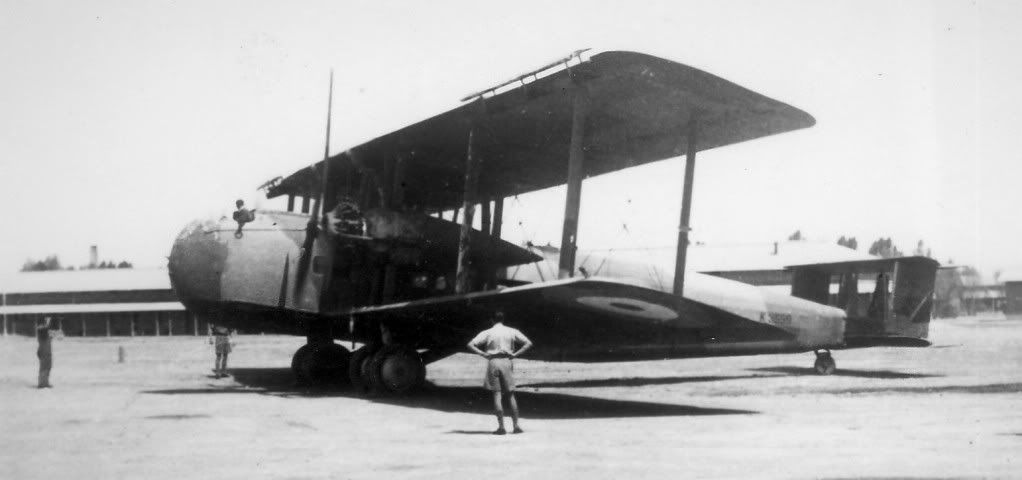

Here are some more images










Logged

RealDarko

  • Modder
  • member
  • Offline Offline
  • Posts: 2029
Re: Early British Transport: Vickers Type 264 Valentia
« Reply #2 on: April 05, 2015, 02:05:51 PM »

This plane will be perfect for Habbaniya operations! Will love a map with RAF Habbaniya and Basra included on the same map.
Logged

David Prosser

  • member
  • Offline Offline
  • Posts: 2909
Re: Early British Transport: Vickers Type 264 Valentia
« Reply #3 on: April 06, 2015, 11:10:10 PM »

I'd d/l it in a nanosecond.
Logged

RealDarko

  • Modder
  • member
  • Offline Offline
  • Posts: 2029
Re: Early British Transport: Vickers Type 264 Valentia
« Reply #4 on: November 27, 2018, 03:43:27 AM »

Now that there's a bit of retro modding ( modding early types), wondering If we can BUMP it!
Logged

sosezi

  • member
  • Offline Offline
  • Posts: 274
  • Bombers ~ Old flying Buckets is my Love!
Re: Early British Transport: Vickers Type 264 Valentia
« Reply #5 on: December 26, 2018, 03:31:07 AM »

ME WANT!! :D
